Configure the data connector timeout in Bold Reports® Report Server

To configure the data connector timeout in Bold Reports® Report Server, set TimeOutInMinutes under DataOptions in the reporting config.xml file.

What does the timeout setting control?

The Bold Reports® Report Server timeout setting specifies how long the HTTP client waits for a response after sending an HTTP request. Increasing the timeout value helps avoid request failures when the HTTP request takes longer to respond.

What are the default and maximum timeout values?

Report Server uses these defaults and limits for the data connector timeout:

  • Minimum default: 4 minutes
  • Maximum allowed: 30 minutes
  • Configuration key: TimeOutInMinutes (under the DataOptions section)

How do I configure the timeout setting?

Set the timeout for Bold Reports® Report Server in the reporting config.xml file with these steps:

  1. Navigate to UMS Settings → Configuration → reporting/config.xml.

  2. Add or update the following XML nodes:

    <DataOptions>
    <TimeOutInMinutes>{Desired time limit in minutes}</TimeOutInMinutes>
</DataOptions>

  3. Save the file and restart the on‑premises server for the changes to take effect.

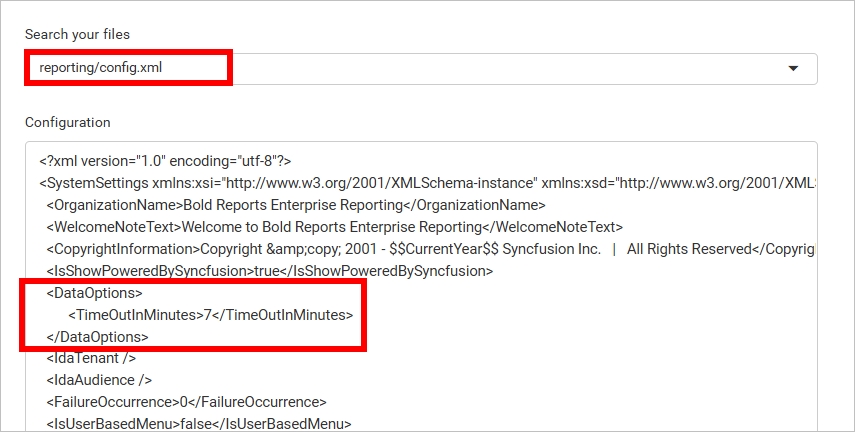

    The following screenshot shows the DataOptions node with TimeOutInMinutes in config.xml.

    Dataoptions setting

Note: Replace {Desired time limit in minutes} with the required timeout value. If TimeOutInMinutes is not configured, the server uses the default (4 minutes).

What should I check when I use a reverse proxy?

If Bold Reports® Server is deployed with a reverse proxy server, make sure the proxy server’s timeout values are equal to or greater than the configured TimeOutInMinutes value. Otherwise, the proxy server terminates the connection before the HTTP request times out.

How do I set timeouts in Nginx-based environments?

Nginx has default request timeout values (commonly around 60 to 300 seconds, depending on the directive). Adjust these timeouts for Bold Reports® Server based on application requirements to prevent unexpected client or upstream disconnections. The following table lists the Nginx configuration file to edit in each environment:

Environment File
Linux and Docker single-container /etc/nginx/sites-enabled/default
Docker multiple-container default.conf
Kubernetes (K8S) Ingress.yaml

Timeout Properties in Linux and Docker environments

In Linux and Docker environments, set the following Nginx timeout properties for Bold Reports® Server:

    proxy_connect_timeout {Desired time limit in seconds};
    proxy_send_timeout {Desired time limit in seconds};
    proxy_read_timeout {Desired time limit in seconds};
    send_timeout {Desired time limit in seconds};

Timeout setting Linux

Timeout properties in Kubernetes (K8S) environment

In a Kubernetes (K8S) environment, set the following Nginx timeout properties for Bold Reports® Server:

    proxy_connect_timeout {Desired time limit in seconds};
    proxy_send_timeout {Desired time limit in seconds};
    proxy_read_timeout {Desired time limit in seconds};

Timeout setting Kubernetes

How do I set timeouts in other reverse proxy servers?

If Bold Reports® Server is deployed with a reverse proxy server other than Nginx, configure that proxy server’s equivalent timeout properties (connection, send, and read).

Frequently asked questions

What timeout does Report Server use if I do not set TimeOutInMinutes?

If TimeOutInMinutes is not configured, the server uses the default of 4 minutes.

What is the maximum timeout I can set?

The maximum allowed value for TimeOutInMinutes is 30 minutes.
