Connect Sybase with Bold Data Hub

The Bold Data Hub Sybase connector connects to a Sybase database and fetches data from tables or views into Bold Reports®. The Sybase connector supports authentication, handles nested or related data, and presents the results in a clean, structured format for easy use.

How do I get the Sybase ODBC connection details?

You set up the Sybase connection for Bold Reports® by configuring an ODBC DSN on your system and then selecting it in the Sybase connector.

  1. Configure an ODBC DSN on your system:
    • Open ODBC Data Source Administrator.
    • Go to the System DSN tab and click Add.
    • Select the Sybase ODBC driver and configure it with: - Data Source Name (DSN) - Server Name/IP - Port - Database Name
  2. Provide credentials:
    • Enter your Username and Password for the Sybase database.
  3. Connect in Bold Reports®:
    • In Bold Reports®, choose the Sybase connector.
    • Select the configured DSN, enter your credentials, and click Connect.

Connection Properties

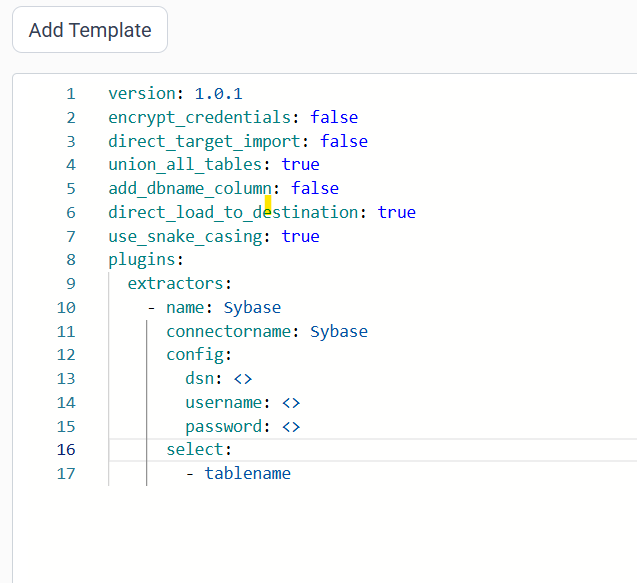

The Sybase connector in Bold Data Hub reads the following properties from the config section of a YAML file:

connectorname: Sybase
dsn: <>
username: <>
password: <>

Example Configuration

The following Bold Data Hub YAML template shows a complete Sybase extractor configuration:

version: 1.0.1
destination:
plugins:
  extractors:
    - name: Sybase
      connectorname: Sybase
      schemaname:
      config:
        dsn: <>
        username: <>
        password: <>
      properties:
      metadata:
      select:
      - tablename

How do I connect Sybase in Bold Data Hub?

You connect Sybase by creating a pipeline in Bold Data Hub and adding the Sybase connector template to it.

  1. Click the Bold Data Hub icon on the Navigation Pane.

    Sybase - BoldBI

  2. Click Add Pipeline and enter a name for the new pipeline.

    Sybase - BoldBI

  3. Select the newly created pipeline and choose the Sybase connector. Double-click it, or click the Add Template option, to add the template.

    Sybase - BoldBI

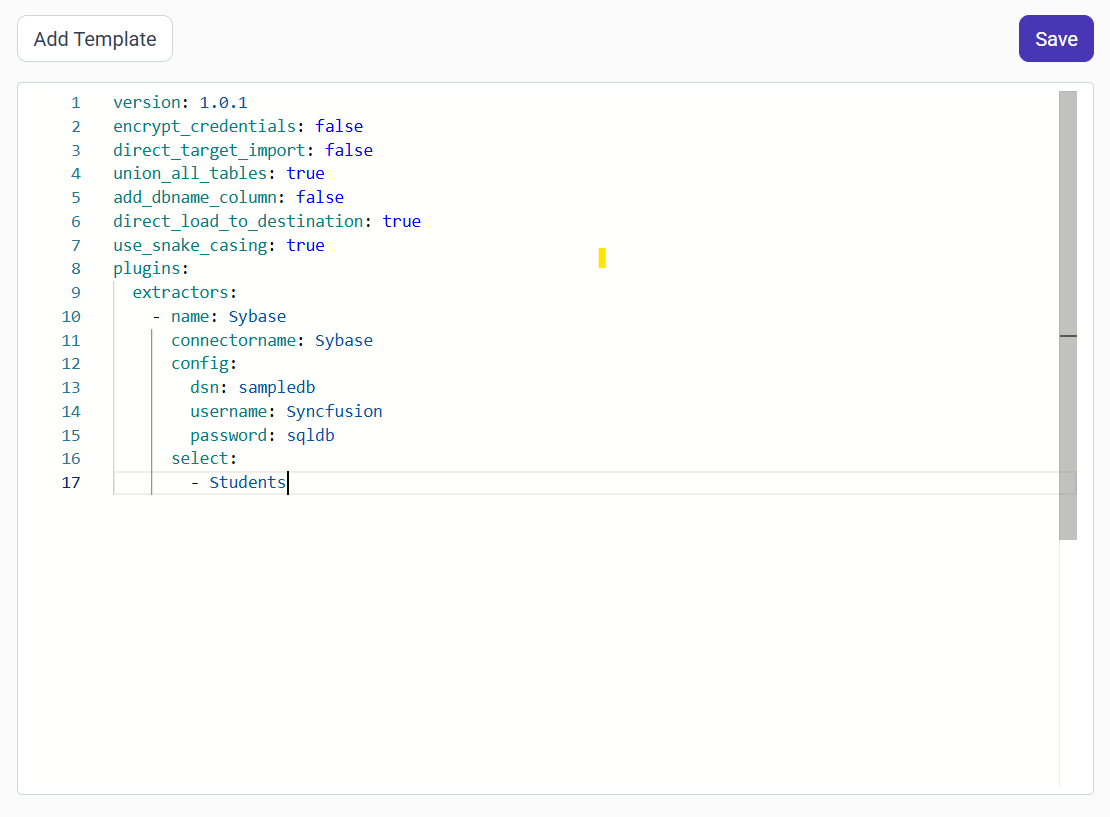

  4. Update the template, using the configuration parameters below. The following screenshot shows the completed Sybase template.

    Sybase - BoldBI

  5. Click Save and choose the destination to save the pipeline.

    Sybase - BoldBI

Creating a pipeline in Bold Data Hub automatically creates a data source in Bold Reports®. The Bold Reports® data source is a live data source to the destination database used in Bold Data Hub.

Sybase - BoldBI

Configuration Parameters

The Sybase template in Bold Data Hub uses these parameters:

Parameters Description
Username: Provide the username to authenticate with the Sybase server.
Password: Provide the password associated with the Sybase username.
DSN Name: Specify the ODBC Data Source Name configured for the Sybase database
Select: Tablename(s): Specify the list of tables to load data from the Sybase server.

How do I schedule the Sybase pipeline?

You schedule the Sybase pipeline in Bold Data Hub from the schedules tab, or you run it on demand.

  1. To configure interval-based scheduling, click the schedules tab, select the created pipeline, click the schedule icon, and configure the schedule.

    Sybase - BoldBI

    Sybase - BoldBI

  2. For an on-demand refresh, click the Run Now button.

    Sybase - BoldBI

  3. Check the schedule history with the history option and the logs.

    Sybase - BoldBI

  4. Click Logs to see whether the run is completed and the data source is created in Bold Reports®.

    Sybase - BoldBI

  5. Click the Edit DataSource option to view the created tables.

Frequently asked questions

Does the Sybase connector need an ODBC DSN?

Yes. Configure an ODBC DSN with the Sybase ODBC driver, then select that DSN in the Bold Data Hub Sybase connector.

Can Bold Data Hub load Sybase views?

Yes. The Bold Data Hub Sybase connector fetches data from tables or views.
