Connect Google BigQuery with Bold Data Hub

The Bold Data Hub Google BigQuery connector loads data from BigQuery datasets into Bold Reports^®. Google BigQuery is a fully managed, serverless data warehouse for fast SQL-based querying of large datasets. It is designed to handle massive volumes of data, making it ideal for advanced analytics and reporting use cases.

Service Account Credential

Service account credentials for the Bold Data Hub Google BigQuery connector are more suitable for server-to-server interactions.

Grab Google Service Account Credentials

You get Google service account credentials for Bold Data Hub from the Google Cloud console of your GCP account.

1. Sign in to https://console.cloud.google.com.



2. Create a service account if necessary.

3. Enable the BigQuery API (refer to Google documentation for detailed instructions).

4. Generate credentials:

   • Navigate to IAM & Admin in the console’s left panel, then select Service Accounts.
   • Find the service account you want to use and click the three-dot menu under the Actions column.
   • Create a new JSON key by selecting Manage Keys > ADD KEY > CREATE.
   • Download the .json file containing the necessary credentials for future use.

How do I share the Google BigQuery project with the API?

You share the Google BigQuery project by granting the service account’s client_email access in Google Cloud IAM. Bold Data Hub can then read your datasets.

1. Log into your Google Cloud Console.
2. Navigate to the project that contains your BigQuery datasets.
3. In the left-hand menu, go to IAM & Admin > IAM.
4. Click the ”+ Grant Access” button at the top.
5. In the New principals field, enter the client_email from the service account.
6. Assign the required role(s):
   • BigQuery Data Viewer: to view datasets and tables.
   • BigQuery Read Session User: to enable fast and efficient reads via the BigQuery Storage AP.
   • (Optional) BigQuery Admin: for full read-write access to BigQuery resources.
7. Click Save to complete the process.

Connection Properties

The Google BigQuery connector in Bold Data Hub reads the following properties from the config section of a YAML file:

credentials_path: Path to your service account JSON file
project_id: ID of your Google Cloud project
dataset_id: ID of the dataset in BigQuery

Example Configuration

The following Bold Data Hub YAML template shows a complete Google BigQuery extractor configuration:

version: 1.0.1
encrypt_credentials: false
union_all_tables: true
add_dbname_column: false
plugins:
  extractors:
    - name: Google Bigquery
      connectorname: Google Bigquery
      schemaname:
        config:
          credentials_path: C:\\Path\\To\\ServiceAccount.json
          project_id: your-project-id
          dataset_id: your-dataset-id
        properties:
          metadata:
            select:
              - your_table_name

How do I connect Google BigQuery in Bold Data Hub?

You connect Google BigQuery by creating a pipeline in Bold Data Hub, adding the Google BigQuery template, and pointing the credentials_path property to your uploaded JSON key file.

1. Click the Bold Data Hub icon on the Navigation Pane.



2. Click Add Pipeline and enter a name for the new pipeline.



3. Select the newly created pipeline and choose the Google BigQuery connector. Double-click it, or click the Add Template option, to add the template.



4. Click the Upload File button to upload your credentials JSON file.

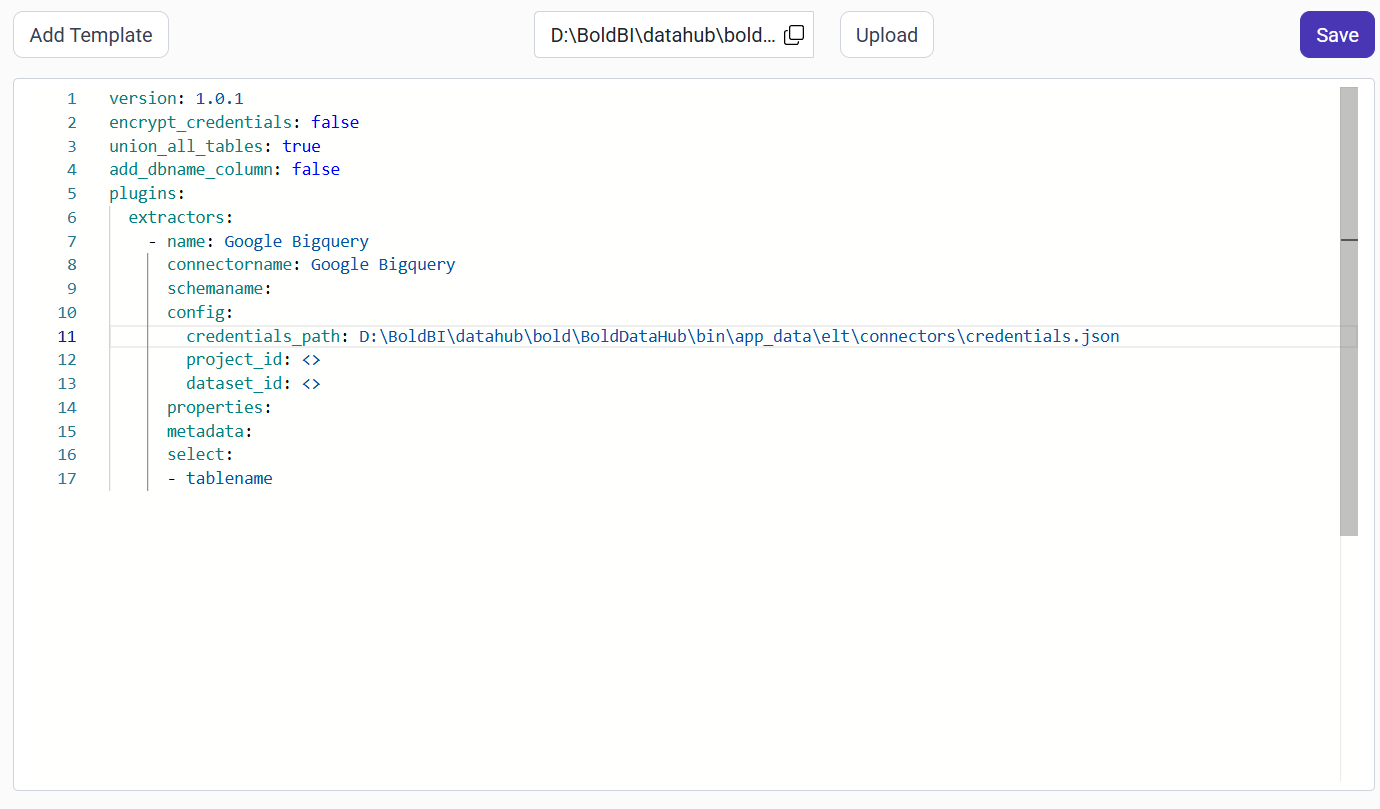

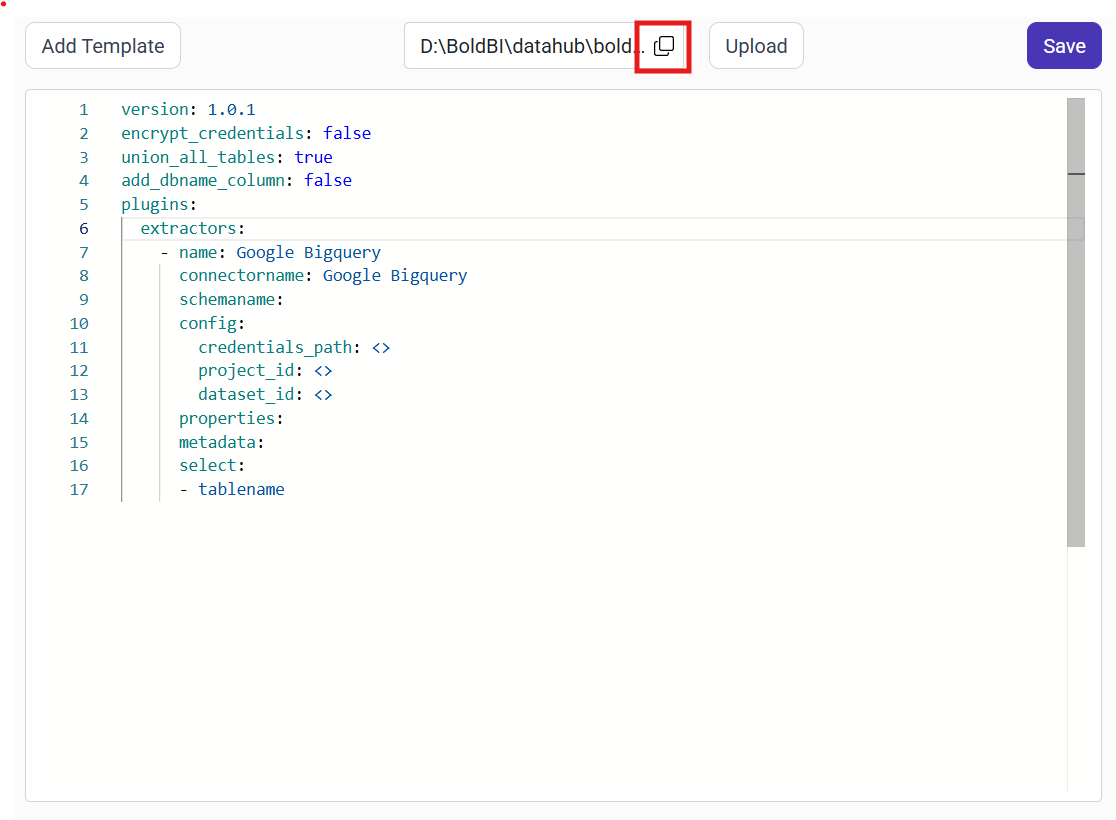

5. Copy the file path of the JSON file and paste it into the credentials_path property.

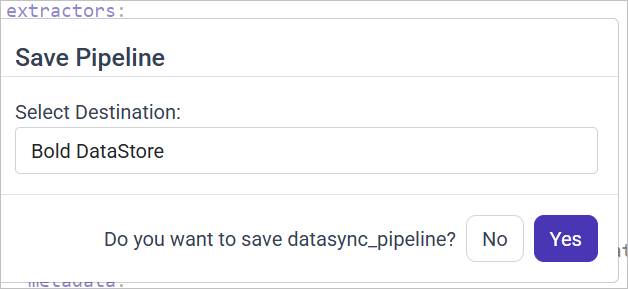

6. Click Save and choose the destination to save the pipeline.

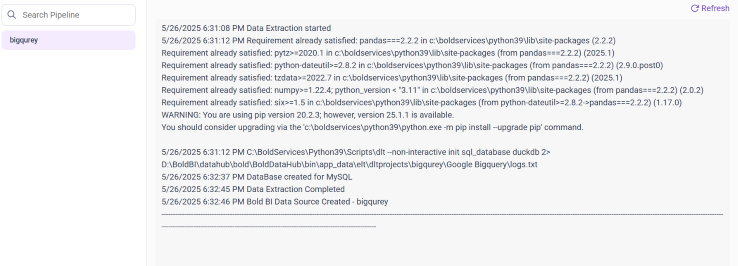

7. The pipeline is saved and starts automatically. Click Logs to see whether the run is completed and the data source is created in Bold Reports^®.

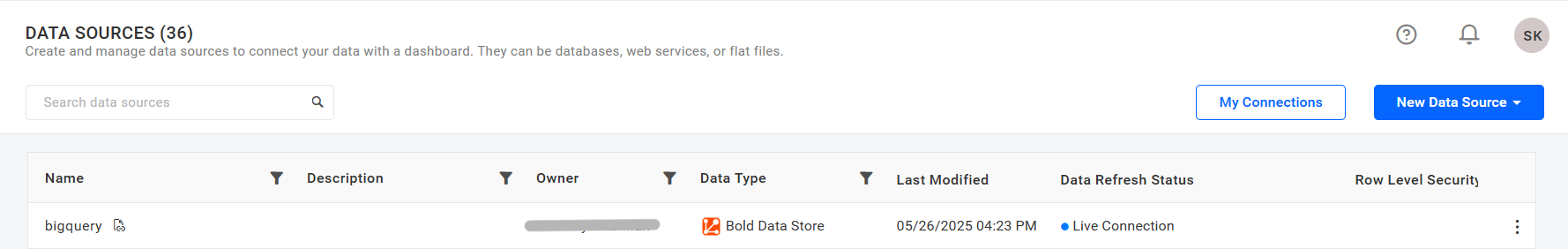

Creating a pipeline in Bold Data Hub automatically creates a data source in Bold Reports^®. The Bold Reports^® data source is a live data source to the destination database used in Bold Data Hub.

Warning:

1. The `Encrypt_Credentials` property should be set to false when updating the new access token on the template. If you have modified other properties, such as 'select' or 'account id', the `Encrypt_Credentials` property must be set to true.
2. The default lifetime of the access token is 1 hour. Therefore, you need to convert it to a long-lived access token to use the same token for 60 days. Existing tables should be maintained even if the token has expired or is being used as an invalid token.

Configuration Parameters

The Google BigQuery template in Bold Data Hub uses these parameters:

How do I schedule the Google BigQuery pipeline?

You schedule the Google BigQuery pipeline in Bold Data Hub from the schedules tab, or you run it on demand.

1. To configure interval-based scheduling, click the schedules tab, select the created pipeline, click the schedule icon, and configure the schedule.





2. For an on-demand refresh, click the Run Now button.



3. Check the schedule history with the history option and the logs.



4. Click Logs to see whether the run is completed and the data source is created in Bold Reports^®.



5. Click the Edit DataSource option to view the created tables.

Frequently asked questions

Which BigQuery roles does the service account need?

Assign BigQuery Data Viewer and BigQuery Read Session User to the service account. BigQuery Admin is optional, for full read-write access.

How does Bold Data Hub authenticate with Google BigQuery?

The Bold Data Hub Google BigQuery connector uses a service account JSON key file, set in the credentials_path property.
