Connect Matomo with Bold Data Hub

The Bold Data Hub Matomo connector loads web analytics data from Matomo into Bold Reports. Matomo is a free and open-source web analytics platform for website and application performance insights.

How do I get Matomo credentials?

The Bold Data Hub Matomo connector needs an auth token, your Matomo URL, and the site ID. You get them from your Matomo account.

Sign in to Matomo.
Click the Administration settings icon at the top right.
Navigate to Personal > Security in the left menu.
Find and select Auth Tokens > Create a New Token.
Verify with your password.
Add a descriptive label for your new token.
Click Create New Token. Your token is displayed.
Copy the access token.
Note your Matomo URL, which is the web address in your browser when logged into Matomo, typically mycompany.matomo.cloud.
Find the site_id, a unique ID for each monitored site in Matomo, in the URL or via Administration > Measureables > Manage under ID.

Connection Properties

The Matomo connector in Bold Data Hub reads the following properties from the config section of a YAML file:

connector_name: Matomo
Api_token: Access token
url: URL
queries: Queries
Site_id: ID of the site
Live_events_site_id: ID of the Live events site

Example Configuration

The following Bold Data Hub YAML template shows a complete Matomo extractor configuration:

version: 1.0.1
encrypt_credentials: false
plugins:
  extractors:
    - name: Matomo_data
      connectorname: Matomo
      config:
        api_token: <API TOKEN>
        url: <URL>
      properties:
        type: <REPORTS/VISITS>
        queries: <QUERIES>
        site_id: <SITE ID>
        initial_load_past_days: <LOAD PAST DAYS>
        live_events_site_id: <LIVE EVENTS SITE ID>

How do I connect Matomo in Bold Data Hub?

You connect Matomo by creating a project in Bold Data Hub and adding the Matomo template to it.

Click the Bold Data Hub icon on the Navigation Pane.
Click Add Project and enter a name for the new project.

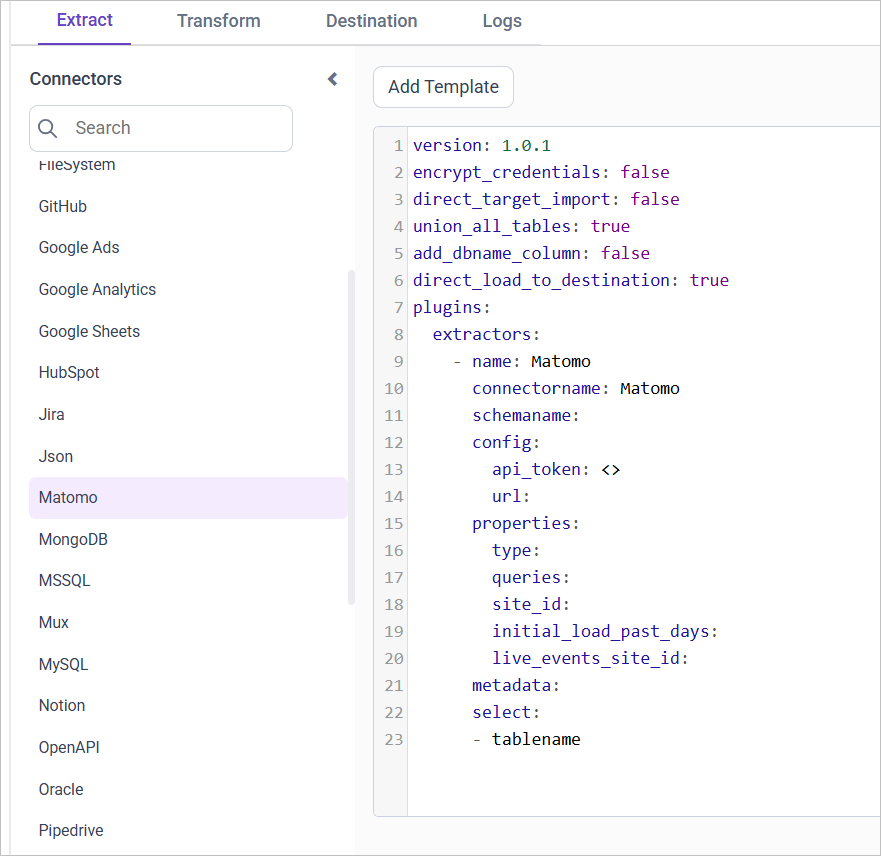

Select the newly created project and add the Matomo template.
Update the API token and URL in the template, and update the resources in the select property.
Click Save and choose the destination to save the pipeline.

Creating a pipeline in Bold Data Hub automatically creates a data source in Bold Reports^®. The Bold Reports^® data source is a live data source to the destination database used in Bold Data Hub.

Which Matomo resources can I load?

The Bold Data Hub Matomo connector supports these resources in the select property:

The available resources are supported in Matomo
- matomo_reports
- matomo_visits

Warning:

1. The `Encrypt_Credentials` property should be set to false when updating the new access token on the template. If you have modified other properties, such as 'select' or 'account id', the `Encrypt_Credentials` property must be set to true.
2. The default lifetime of the access token is 1 hour. Therefore, you need to convert it to a long-lived access token to use the same token for 60 days. Existing tables should be maintained even if the token has expired or is being used as an invalid token.

How do I schedule the Matomo pipeline?

You schedule the Matomo pipeline in Bold Data Hub from the schedules tab, or you run it on demand.

To configure interval-based scheduling, click the schedules tab, select the created pipeline, click the schedule icon, and configure the schedule.
For an on-demand refresh, click the Run Now button.
Check the schedule history with the history option and the logs.
Click Logs to see whether the run is completed and the data source is created in Bold Reports^®.
Click the Edit DataSource option to view the created tables.
