Insert or Delete a Row

You can insert or delete rows in the tablix to organize data in your report in a better way.

Insert a row

You can add a row in two ways:

By selecting respective row,

1. Right-click on a row gripper where you want to insert a row.
2. Click on Insert Row and then click Above or Below.

By selecting a respective cell,

1. Right-click a cell in the tablix where you want to insert a row.
2. Click on Insert Row and then click Above or Below.

Now, a new row will be added above or below of the target row.

Insert a row in a group

You can add a row in a group in two ways:

By selecting respective row,

1. Right-click on a row group gripper where you want to insert a row.
2. Click on Insert Row.

By selecting a respective cell,

1. Right-click a row group cell in the tablix where you want to insert a row.
2. Click on Insert Row

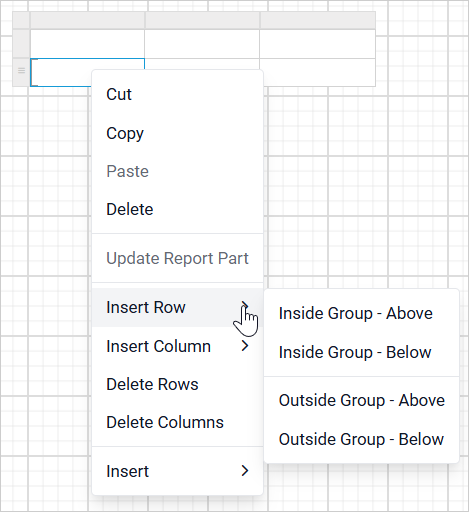

The following options will be listed in the Insert Row menu.

1. Inside Group - Above - A new row is added inside the target group but in the top position. In the below snap, the Grouping Indicator denotes that the row is added inside the group.
2. Inside Group - Below - A new row is added inside the target group but in the bottom position. In the below snap, the Grouping Indicator denotes that the row is added inside the group.
3. Outside Group - Above - A new row is added outside of the target group but in the top position. In the below snap, notice that the Grouping Indicator is shown only for the target group.
4. Outside Group - Below - A new row is added outside of the target group but in the bottom position. In the below snap, notice that the Grouping Indicator is shown only for the target group.

Delete a row

You can delete a row in two ways:

By selecting respective row,

1. Select a row that you want to delete.
2. Right-click on the row gripper of the respective row.
3. Then click on the Delete Rows in the context menu.

By selecting a respective cell,

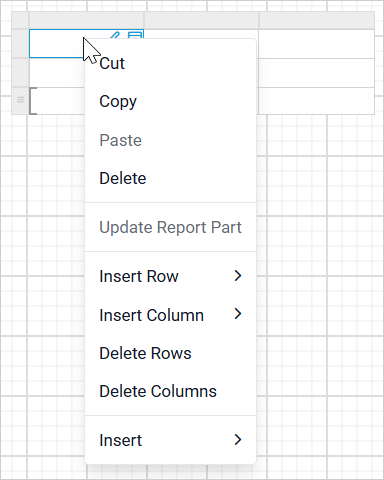

1. Right-click a cell in the tablix where you want to delete a row.
2. Then click on the Delete Rows in the context menu.

Now, a selected row or rows will be deleted from the tablix.

Delete a row from a group

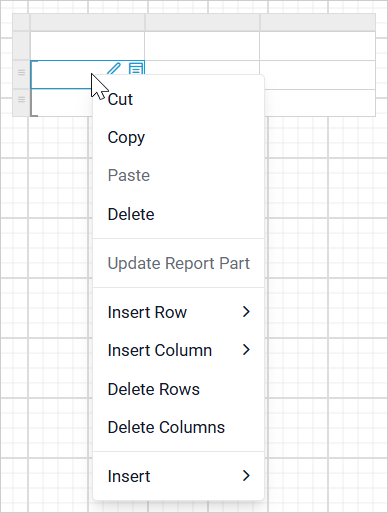

1. Right-click a row group cell in the row group of a tablix.
2. Then click Delete Rows.

Now, a selected row will be deleted from the tablix.
