Configure MySQL for Bold Reports® application startup

Bold Reports® supports MySQL databases for storing user identities and report details. MySQL support was introduced starting with version v2.4.19.

MySQL Database Configuration for Bold Reports® Server Sites

The Bold Reports® MySQL configuration stores the reports, users, and their access permissions in a MySQL Server database.

To connect to the MySQL Server instance, follow these steps:

  1. Select the server type as MySQL and provide the Server name and Port number.

  2. Provide the Username and password of the server to be connected.

  3. Choose how to connect to the MySQL Server:

    • Create new database.
    • Use an existing database.

  4. Provide the database name and proceed further.

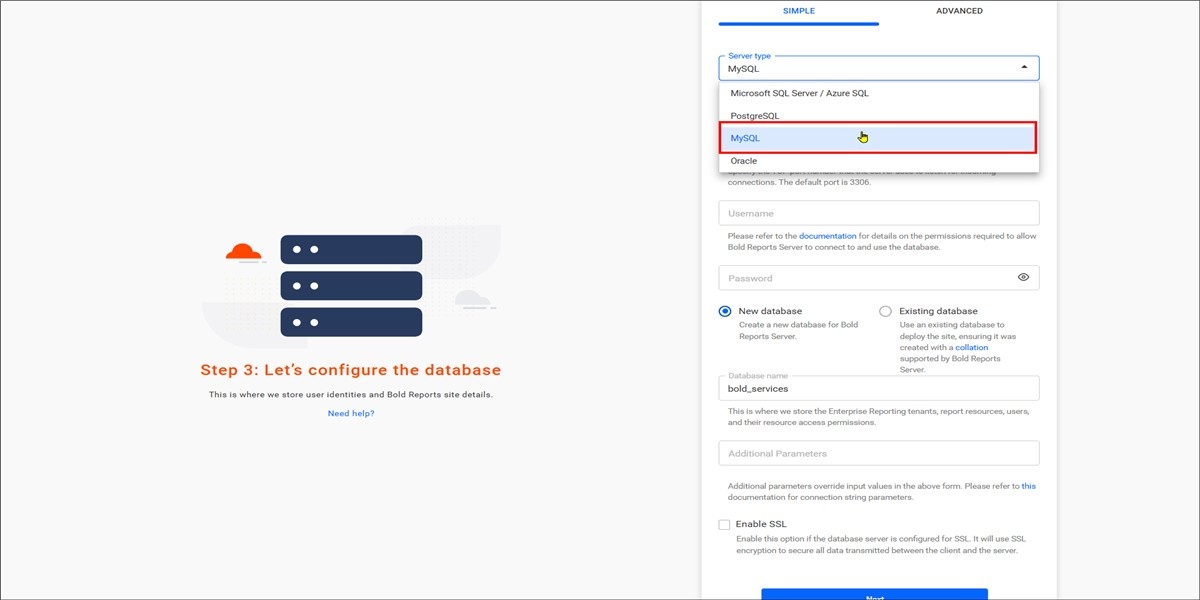

MySQL Server

Important: The Bold Reports® server will accept all the connections that use Transport Layer Security (TLS 1.2/1.3) encryption and AES Cryptography (128 bits). While configuring the Bold Reports® Server, choose the Enable SSL option to support encrypted data transfer.

Note: You cannot create a MySQL database from Azure App Service.

Which configuration mode should I use?

Bold Reports® lets you select simple or advanced mode for the MySQL configuration.

Simple mode

Bold Reports® Simple mode configures a single database for Bold ID and Bold Reports®.

The configuration stores the user identities, sites details, reports, users and their access permissions in a single database.

The sites will be deployed to the local file system by default in Simple mode

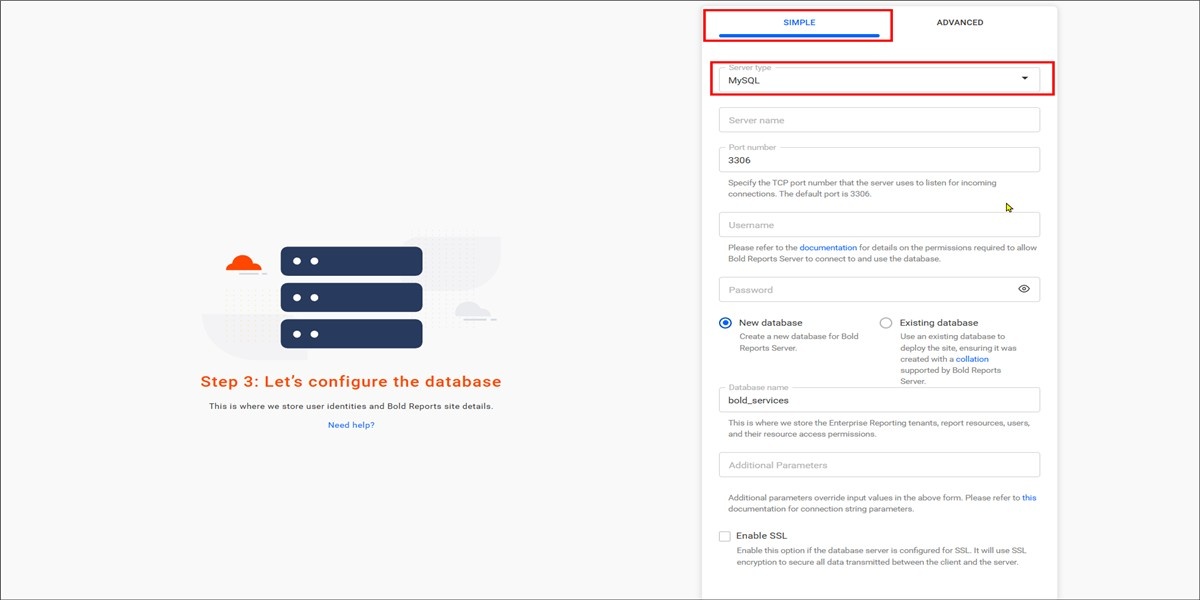

Simple Mode

Advanced mode

Bold Reports® Advanced mode configures individual databases for Bold ID and Bold Reports®. You can choose between the local file system and Azure Blob Storage for Bold ID and Bold Reports®.

Bold ID database stores user identities and sites details.

Bold Reports database stores reports, users, and their access permissions.

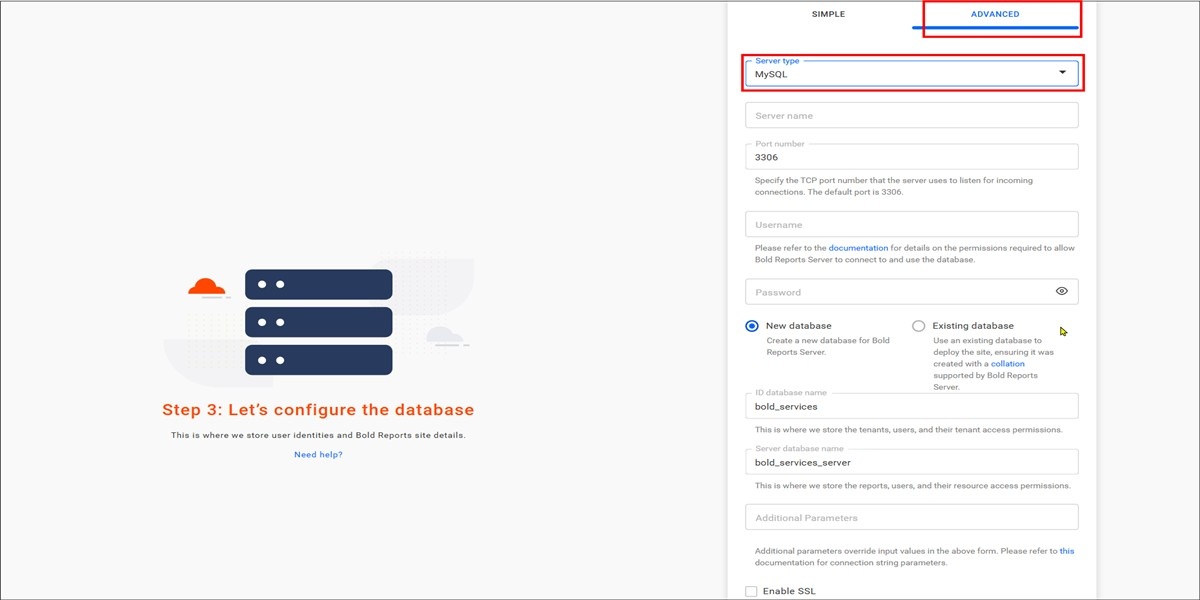

Advanced Mode

Frequently asked questions

Which Bold Reports® version added MySQL support?

Bold Reports® introduced MySQL database support starting with version v2.4.19.

Can I create a MySQL database from Azure App Service?

No. You cannot create a MySQL database from Azure App Service.
