Chart Axis

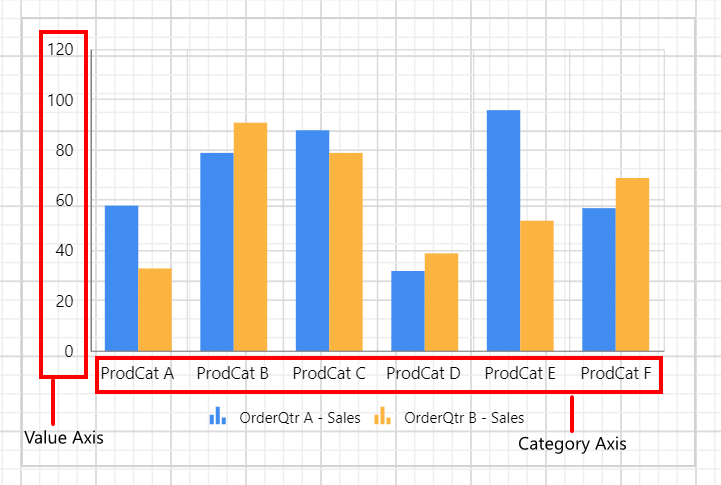

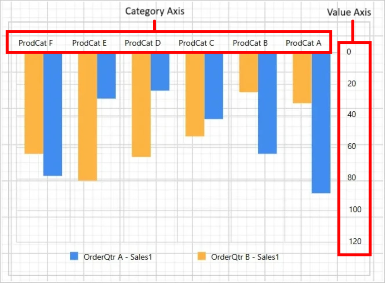

Charts typically have two axes that are used to measure and categorize data: a vertical (y) primaryYAxis, and a horizontal (x) primaryXAxis. You can customize the axis appearance through the properties provided under the Category Axis and Value Axis category of chart properties. To customize category axis change the properties under the Category Axis property and for value axis change the properties under the Value Axis category.

Axis Type

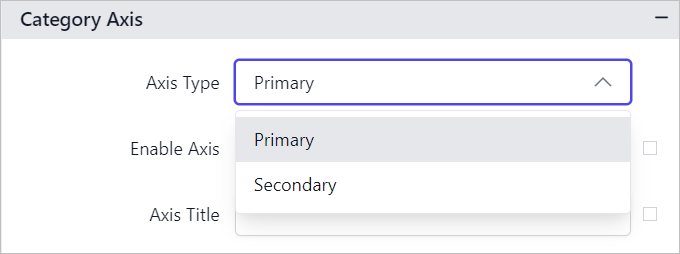

The Axis Type dropdown displays options for both Primary and Secondary axes.

Chart Axis Types

If you choose the Primary option in the Axis Type dropdown, the values designated for the properties below will be applied uniformly to all series marked as primary axes in the chart.

Chart primary axis options

Similarly, if you choose the Secondary option in the Axis Type dropdown, the values designated for the properties below will be applied uniformly to all series marked as secondary axes in the chart.

Chart secondary axis options

Note: Axis properties are not applicable for Proportion and KPI chart types.

The steps outlined above detail the configuration of the category axis, and the process remains consistent for the value axis as well.

Show or hide axis

To show/hide axis in the chart surface, toggle the Enable Axis checkbox in the properties panel.

Chart Types

If you enable the Enable Axis checkbox, the chart axis will be displayed in the chart area.

Chart Types

You can also enable or disable the chart axis based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Axis Title

The title property in the axis provides options to customize the text and font of the axis title. You can customize the font family, font style, font weight, alignment and size. Axis does not display the title, by default.

To display title text for axis, provide the text in Axis Title textbox.

Chart Types

Now, the text will be displayed in the respective axis of chart design.

Chart Types

To set font weight, color, style, size and alignment, open the Advanced Menu of axis title property.

Chart Types

Now, the font properties will listed in the Advanced Options menu,

Chart Types

You can also set the chart axis title text based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Line Style

The Line Style property can be used to set the line style, width, and color of the axis line.

Chart Types

In the below snap, line style, color and width properties are applied to chart axes.

Chart Types

You can also apply the line style, color and width properties based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Label Overflow Mode

The Label Overflow Mode property can be used to handle the display mode of the overlapping labels.

Trim

This option trims the end of overlapping label in the axis.

Hide

This option hides the overlapping label in the axis.

Chart Types

You can also apply the label overflow mode based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Label Rotation

The Label Rotation property can be used to define the rotation angle for the axis labels to display in the chart design.

Chart Types

Increase or decrease the rotation angle in the label rotation numeric textbox,

Chart Types

You can also set the label rotation property based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Label Format

The Label Format property can be used to handle different formatting options like display type, denominations, decimal places, currency culture and negative value display format to the value axis labels.

Chart Types

Refer Format Data section to set different formats to the axis label. Here, the Currency format is applied to the Sales values in Value axis. Chart Types

You can also set the label format based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Label Font

The font family, font size, and font color properties can be used to customize the label text.

Chart Types

You can also apply font properties based on dynamic values, by using the Expressions. Refer Set Expressions and Reset Expressions section to open set/reset expression menu in properties panel.Chart Types

Interval

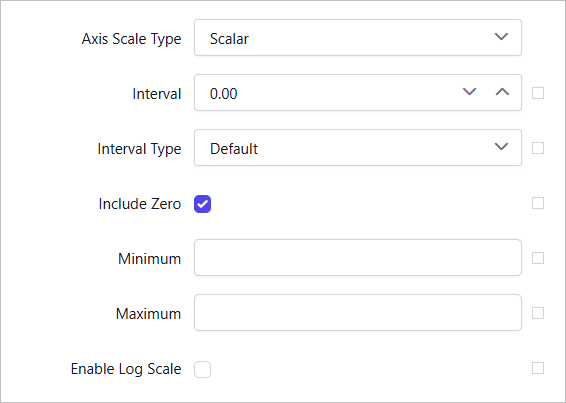

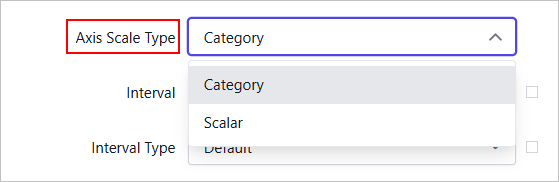

The Interval and Interval Type properties can be used to to set the interval for category and value axes. The interval property allows you to define the number of intervals you want in the category (x) and value (y) axes and it provides the consistent measurement of the data points in the chart report.

Interval

You can also set the interval and interval type properties based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Maximum and Minimum

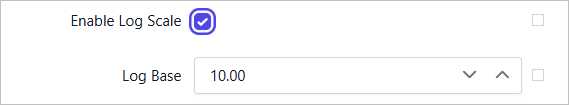

The Maximum and Minimum properties can be used to define the minimum and maximum values on a chart axis.

Maximum and Minimum

You can also set the maximum and minimum properties based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Margin

The Margin property specifies the size of the chart’s margins. Margins are calculated inward from the specified chart size; increasing the margin size does not increase the total chart size, but rather shrinks the chart area, if necessary.

Margin

This property does not apply to pie, doughnut, funnel, or pyramid chart types.

You can also set the margin property based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Include Zero

When the Include Zero property is enabled, the y-axis configures the range so that zero is included. But, whenever y values are big and differences among data points are hard to judge, then disable the Include Zero property. It makes the y-axis to set a range that provides the differences prominently visible.

Include Zero

You can also set the include zero property based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Labels AutoFit Disabled

By default, the Interval Auto setting for the chart axis can cause the labels of X/Y axis to show only every second interval. This property can be used to avoid skipping labels at runtime. Enable or disable this property based on the label rendering behaviour of chart design.

Interval

You can also enable or disable the label autofit based on dynamic values, by using the Expressions. Refer Set Expression and Reset Expression section to open set/reset expression menu in properties panel.

Tick

Tick properties can used to set style, width, color, and length of the axis tick, and to set the visibility of the major and minor tick marks.

Chart Types

Major Ticks

To enable major ticks in the chart axis, toggle the Enable Major Ticks checkbox.

Chart Types

Now, the major ticks will be enabled in the respective chart axis.

Chart Types

To customize the tick color, width and length, open the Advanced... menu.

Chart Types

Click on Advanced... option, now the properties will be listed in the Advanced Option pane.

Chart Types

Minor Ticks

To enable minor ticks in the chart axis, toggle the Enable Minor Ticks checkbox.

Chart Types

Now, the minor ticks will be enabled in the respective chart axis.

Chart Types

To customize the tick color, width and length, open the Advanced... menu.

Chart Types

Click on Advanced... option, now the properties will be listed in the Advanced Option pane.

Chart Types

You can also enable or disable ticks based on dynamic values, by using the Expressions. Refer Set Expressions and Reset Expressions section to open set/reset expression menu in properties panel.

Tick Position

Tick position property can be used to position the ticks outside or inside of the chart axis.

Chart Types

By default, ticks will be positioned outside of the chart axis, in the below snap position is changed as Inside.

Chart Types

You can also apply tick position based on dynamic values, by using the Expressions. Refer Set Expressions and Reset Expressions section to open set/reset expression menu in properties panel.

Axis properties are not applicable for Proportion chart types.
