Deploy Bold Reports^® on Docker Multiple Container

Bold Reports^® can be deployed using Docker containers to simplify setup, enhance scalability, and streamline maintenance. A multi-container Docker setup enables you to run Bold Reports^® in isolated containers that work together seamlessly.

1. Create an empty project directory.


   You can name the directory something easy for you to remember. This directory is the context for your application image. This project directory should contains a docker-compose.yml file which is complete in itself for a good starter BoldReports project.

2. Make and change into your project directory. For example, if you named your directory my_boldreports

    cd my_boldreports/

3. Download the docker-compose YML file and configuration file for Nginx files by running the below commands.

   curl -o docker-compose.yml "https://raw.githubusercontent.com/boldreports/bold-reports-docker/refs/heads/master/deploy/multiple-container/docker-compose.yml"
   curl -o default.conf "https://raw.githubusercontent.com/boldreports/bold-reports-docker/refs/heads/master/deploy/multiple-container/default.conf"

4. Replace <app_base_url> with your DNS or IP address, by which you want to access the application. For example,
   http://example.com
https://example.com
http://<public_ip_address>
http://host.docker.internal


   Note:
   * If you are using the IP address for the Base URL, make sure you are using the public IP of the machine instead of internal IP or local IP address. Applications can communicate with each other using the public IP alone. Host machine IP will not be accessible inside the application container.
   * Use http://host.docker.internal instead of http://localhost. Host machine localhost DNS will not be accessible inside the container. So, docker desktop provides host.docker.internal and gateway.docker.internal DNS for communication between docker applications and host machine. Please make sure that the host.docker.internal DNS has your IPv4 address mapped in your hosts file on Windows(C:\Windows\System32\drivers\etc\hosts) or Linux (/etc/hosts).
   * Provide the HTTP or HTTPS scheme for APP_BASE_URL value.

5. You can also change the Port number other than 80

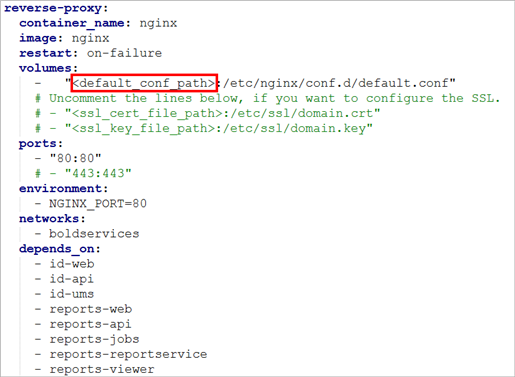

6. Provide the default.conf file path, which you have downloaded earlier in <default_conf_path> place.

   For example:
   Windows: "D:/boldreports/docker/default.conf":"/etc/nginx/conf.d/default.conf"
   Linux: "/var/boldreports/docker/default.conf:/etc/nginx/conf.d/default.conf"

7. Allocate a directory in your host machine to store the shared folders for applications’ usage. Replace the directory path with <host_path_boldservices_data> and <host_path_db_data> in docker-compose.yml file. For example,
   Windows: device: 'D:/boldreports/boldservices_data' and device: 'D:/boldreports/db_data'
   Linux: device: '/var/boldreports/boldservices_data' and device: '/var/boldreports/db_data'

   Note: The docker volumes boldservices_data and db_data persists data of Bold Reports^® and PostgreSQL respectively. Learn more about docker volumes

Build the project

Now, run docker-compose up -d from your project directory.

This runs docker-compose up in detached mode, pulls the needed Docker images, and starts the boldreports and database containers, as shown in the example below.

Note: To use the PostgreSQL server deployed with Bold Reports^® using the docker-compose.yaml file, please use pgdb as the host name of the PostgreSQL server.

Bring up BoldReports in a web browser

At this point, BoldReports should be running in <app_base_url> (as appropriate)

Note: The BoldReports site is not immediately available on port 80 because the containers are still being initialized and may take a couple of minutes before the first load.

Application Startup

Configure the Bold Reports^® On-Premise application startup to use the application. Please refer the following link for more details on configuring the application startup.

https://help.boldreports.com/enterprise-reporting/administrator-guide/application-startup/

Shutdown and cleanup

The command docker-compose down removes the containers and default network, but preserves the volumes of Bold Reports^® and PostgreSQL.

The command docker-compose down —volumes removes the containers, default network, and all the volumes.
