Shape

A Shape Report Item is a graphical element used in a report layout to provide visual structure, separate content areas, or enhance the design without directly displaying data.

Adding a shape to the report

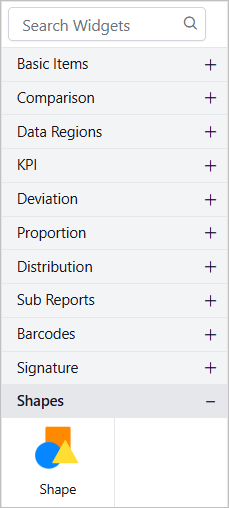

  1. Shape report item is listed in the item panel under the Shapes category. Shape listed in item panel

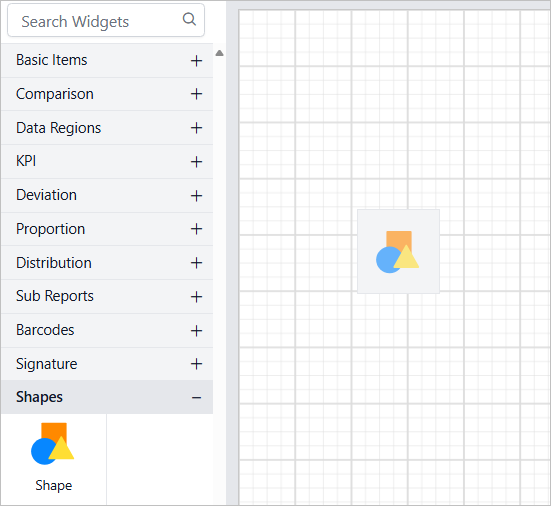

  2. Drag and drop the shape report item into the design area from the item panel. Drag and drop shape report item into design area
  3. Once the shape item is placed in the design area, its corresponding properties will be displayed in the properties panel. Adding Shape to design

Common Shape Properties

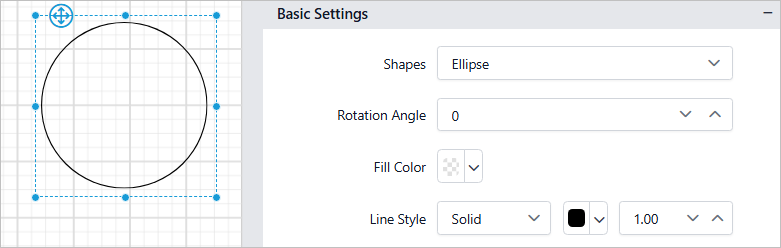

Properties of a shape report item are listed under the Basic Settings category in the properties panel.

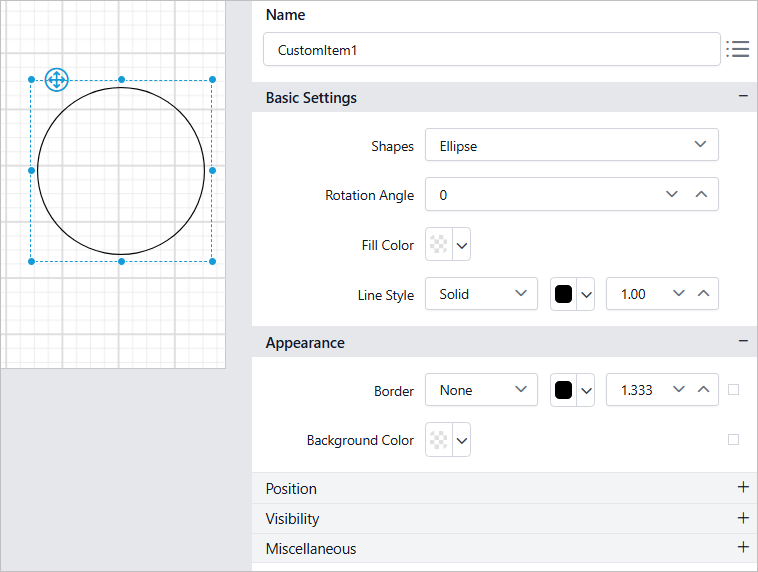

Shape item with properties view

Shapes

The list of supported shapes are provided in the Shapes drop-down menu.

Shape Types

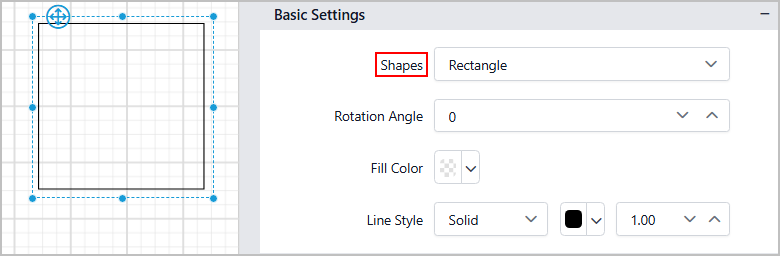

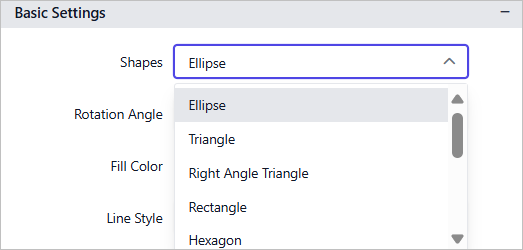

Select a shape in the design area, and then choose a new shape type from the drop-down menu. The design will update accordingly.

Shape types Dropdown

Supported shapes types are listed in the Shape Types section.

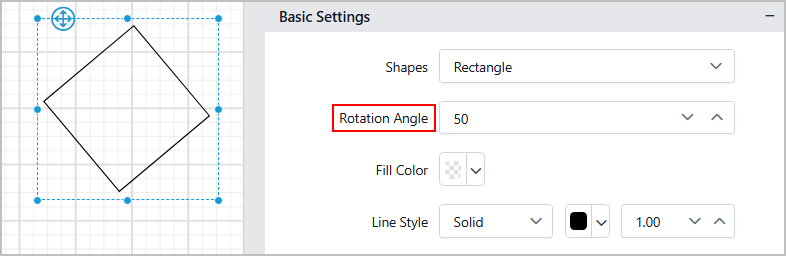

Rotation Angle

The Rotation Angle property enables you to rotate a specific shape to a desired angle. The range is from 0 to 360 degrees.

Shape Rotation Angle

Fill Color

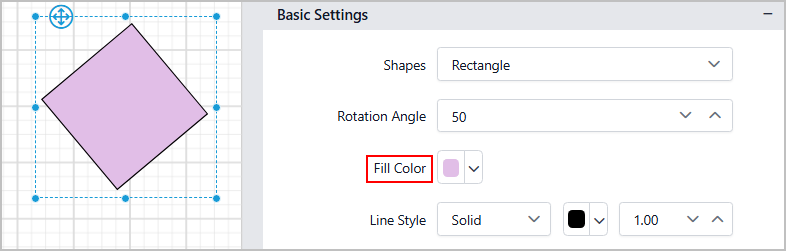

The Fill Color property can be used to set a fill color for a particular shape report item.

Shape fill color

Line Style

The Line Style property can be used to set a stroke color, stroke width, stroke style for a particular shape report item.

Line Style

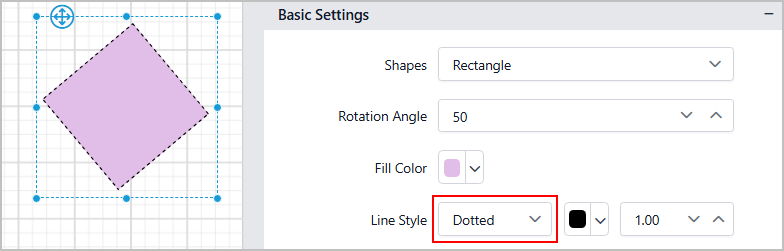

The Line Style property sets the border style for a particular shape report item.

Shape border style

Line Color

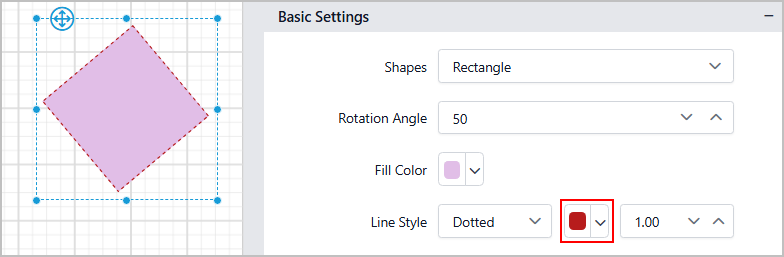

The Line color property sets the border color for a particular shape report item.

Shape border color

Line width

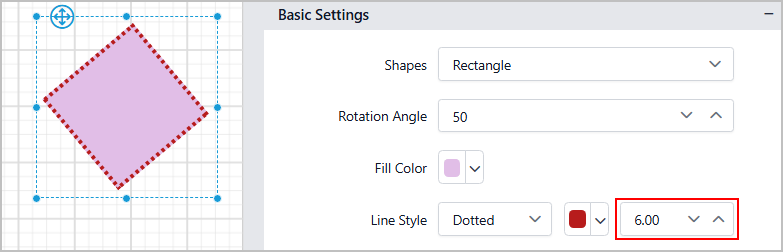

The Line width property sets the border width for a particular shape report item.

Shape border width

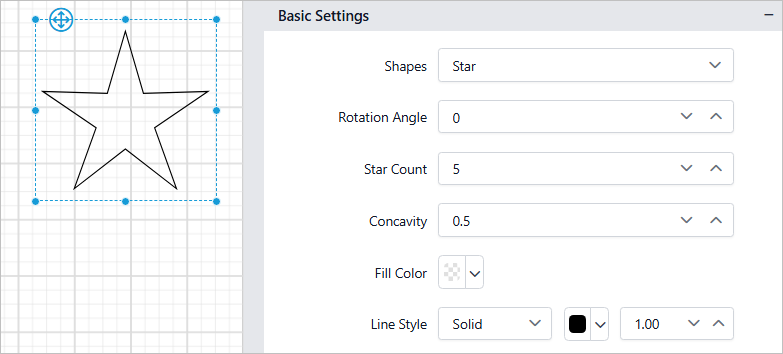

Additional properties for Star shape

Star Count and Concavity are two unique properties available only for the Star shape.

Start shape properties

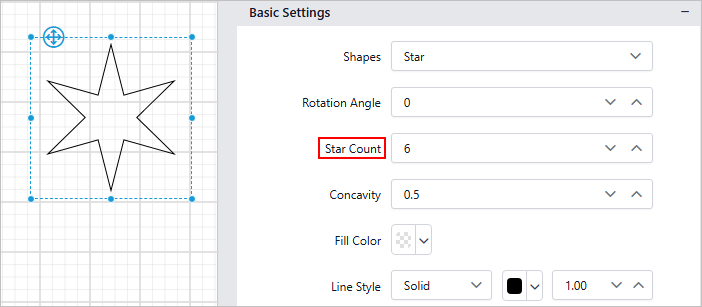

Star Count

The Star Count property specifies the number of points on the star. The range is between 3 and 8.

Start shape count

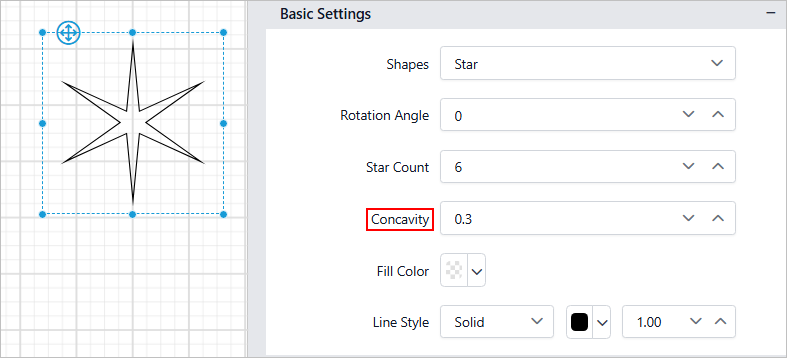

Concavity

The Concavity property adjusts the depth of the star’s inner points. It ranges from 0.3 to 1.0, where lower values create sharper indents.

Start shape concavity

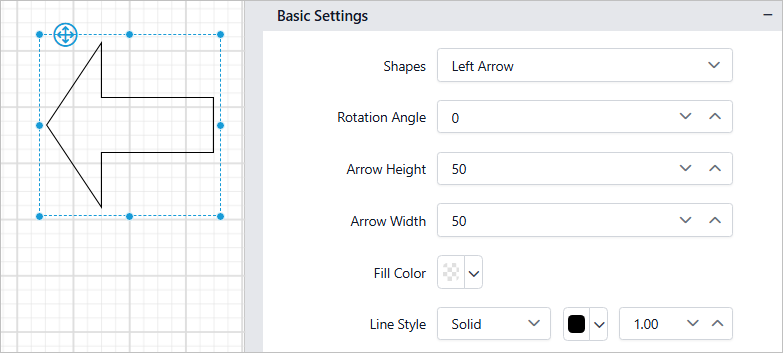

Additional properties for Arrow shape

Arrow Height and Arrow Width are two unique properties available only for the Arrow shape.

Arrow shape properties

Arrow Height

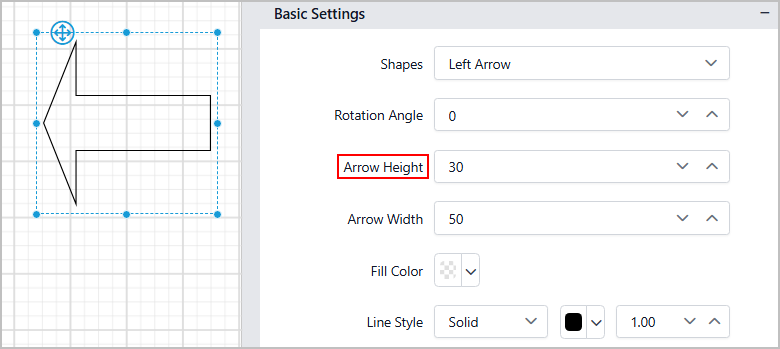

The Arrow Height property defines the height of the arrowhead, with a range from 0 to 100.

Arrow shape height

Arrow Width

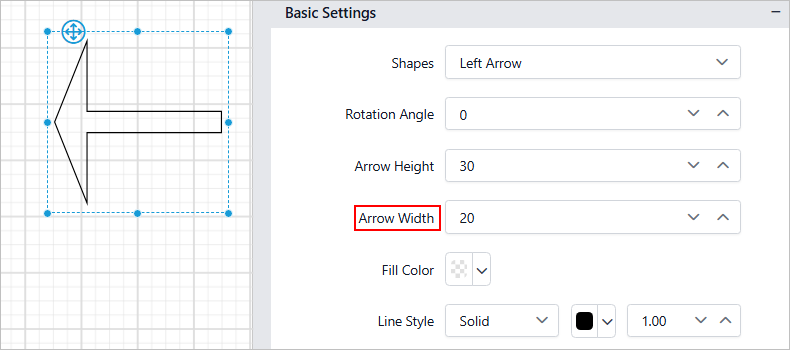

The Arrow Width property defines the width of the arrow’s stem, with a range from 0 to 100.

Arrow shape width

General properties

Name

The Name property can be used to provide an unique name to the shape item in the report.

Appearance

The border style, color, width, and background color properties are used to style and customize the shape’s appearance in the report design. These properties are listed under the Appearance category in the properties panel.

Border

Border properties enable you to add or customize the border around a shape item, helping to visually separate it in the report design. To set border properties using the properties panel, refer to the Border Properties section.

Background color

Using the background color property, you can set the color of the shape’s background. To set background color using properties panel refer Background color section.

Position

The position property is used to define the width, height, left, and top position of the shape in the report design. To handle these properties using properties panel refer Position section.

Visibility

Visibility property is used to conditionally show or hide the shape report item on report preview or export action. To set visibility of shape item using properties panel refer Visibility section.

Miscellaneous

Tooltip

Tooltip property can be used to display informative text or value, when the user hovers over on the report item in report preview. To set tooltip for shape item using properties panel refer Tooltip section.

Bookmark

Bookmark links enable users to navigate to different parts of an SSRS report. You can add bookmarks to textboxes, images, tables, charts, or unique group values in a tablix, directing users to specified locations in the report. The value of the bookmark property can be either custom strings or expressions. For more details, refer to the Bookmark section to configure bookmark in the report design.

Static or dynamic text can be set as the value for the bookmark property. For setting and resetting dynamic text, refer to the Set Expression and Reset Expression sections.

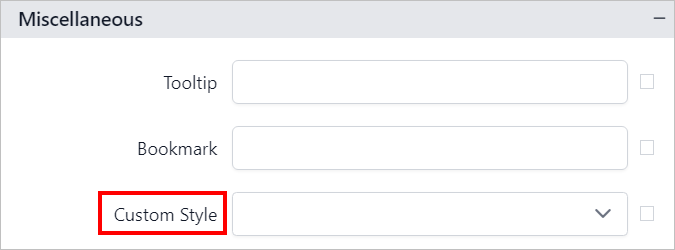

Custom Style

The Custom Style property enables the application of external CSS for styling report items, providing enhanced flexibility beyond the built-in styling options. This feature allows you to meet specific design requirements and maintain consistent styling across multiple reports. For a step-by-step guide on setting up custom styles in your report, check the How To section of this guide.

custom style property

Set expression

An expression can be set to few properties of the shape report item to process the property values based on expressions. To set expressions to the shape report item properties, refer Set Expression section.

Reset expression

To Reset the expression applied to a property, refer Reset Expression section.

Advanced properties

Few properties of the shape report item contains nested properties. To open and handle nested properties, refer Advanced Properties section.
